Three-phase oil-immersed transformers adopt a fully oil-filled, sealed corrugated tank design. The tank shell uses its own elasticity to accommodate oil expansion while meeting heat-dissipation requirements. The core assembly employs a new insulation structure to enhance short-circuit withstand capability and is made from high-quality cold-rolled silicon steel sheets. Both the high-voltage and low-voltage windings use oxygen-free copper conductors in a multi-layer cylindrical structure. All fasteners undergo special anti-loosening treatment, and the manufacturing process includes vacuum drying, vacuum oil filtration and oil filling.
Transformers & Substations

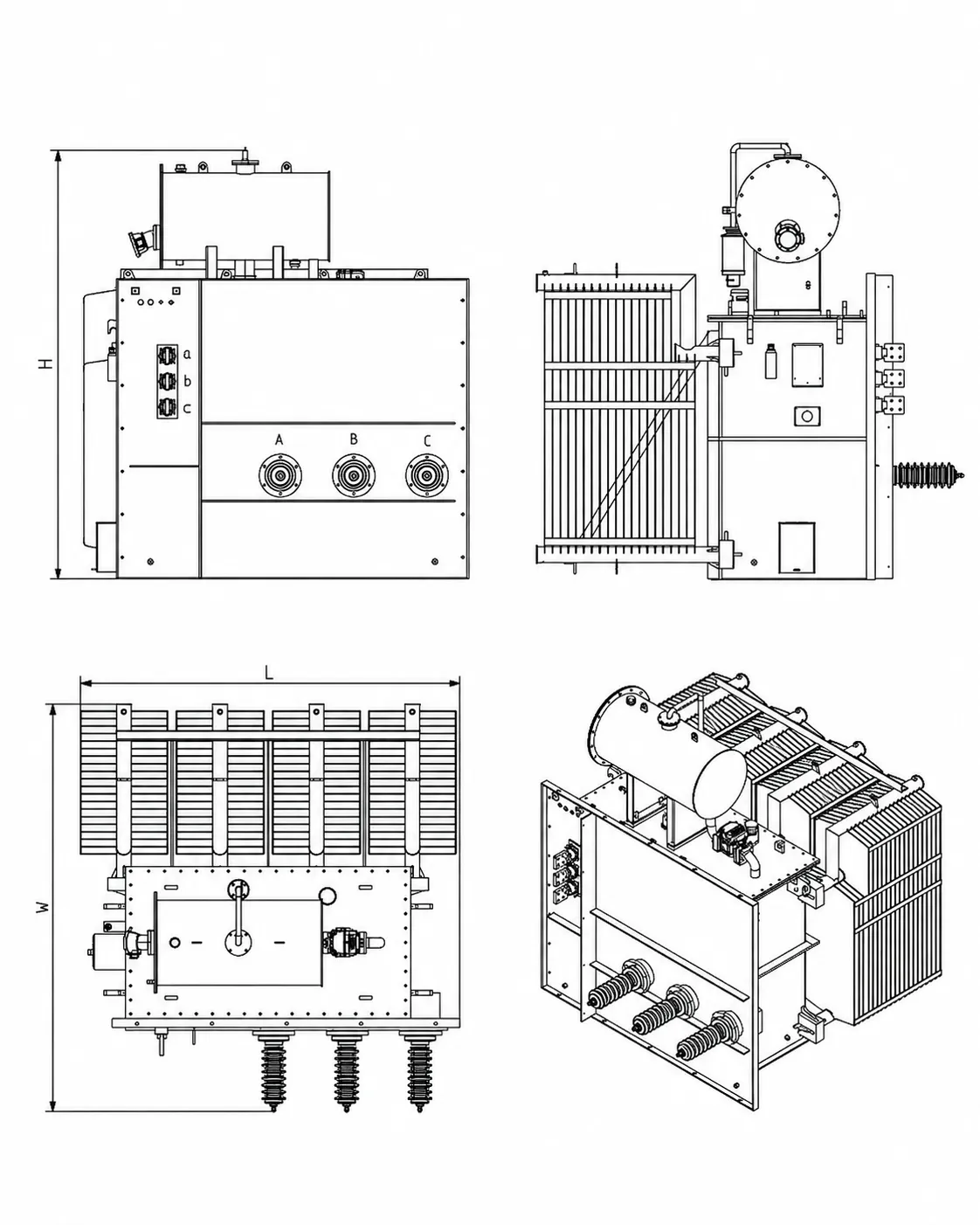

10kV Three-Phase Oil-Immersed Distribution Transformer
10kV
Configure & quote
Customize your 10kV Three-Phase Oil-Immersed Distribution Transformer and get a quote.
1 / 2
Key features
- Fully oil-filled, sealed corrugated tank that uses its own elasticity to accommodate oil expansion while meeting heat-dissipation requirements.
- New core insulation structure that enhances short-circuit withstand capability.
- Oxygen-free copper high- and low-voltage windings in a multi-layer cylindrical structure.
- All fasteners given special anti-loosening treatment.
- Manufactured with vacuum drying, vacuum oil filtration and oil filling.
